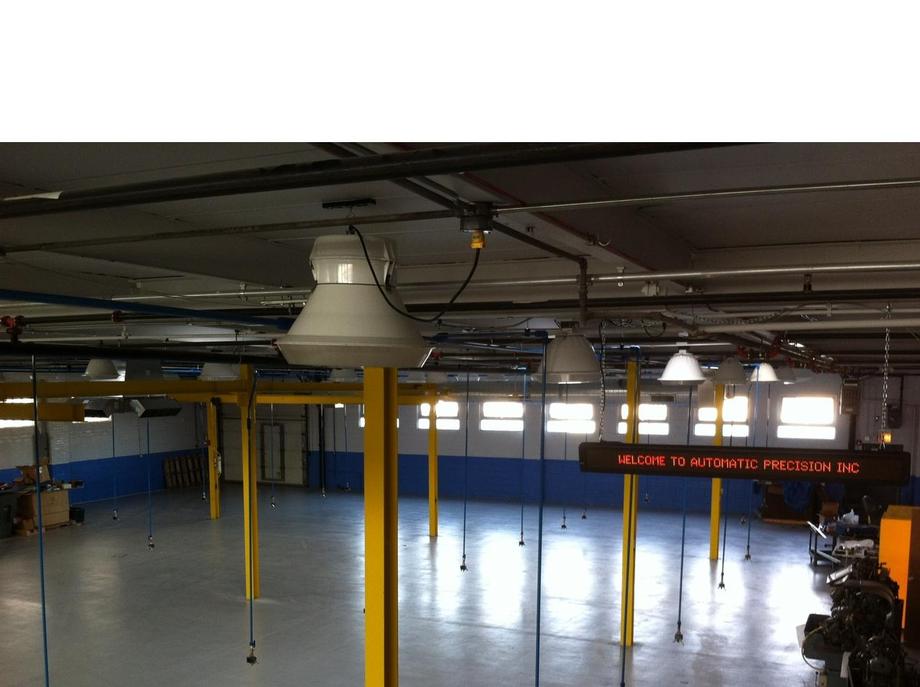

FastPipe Installation Photos

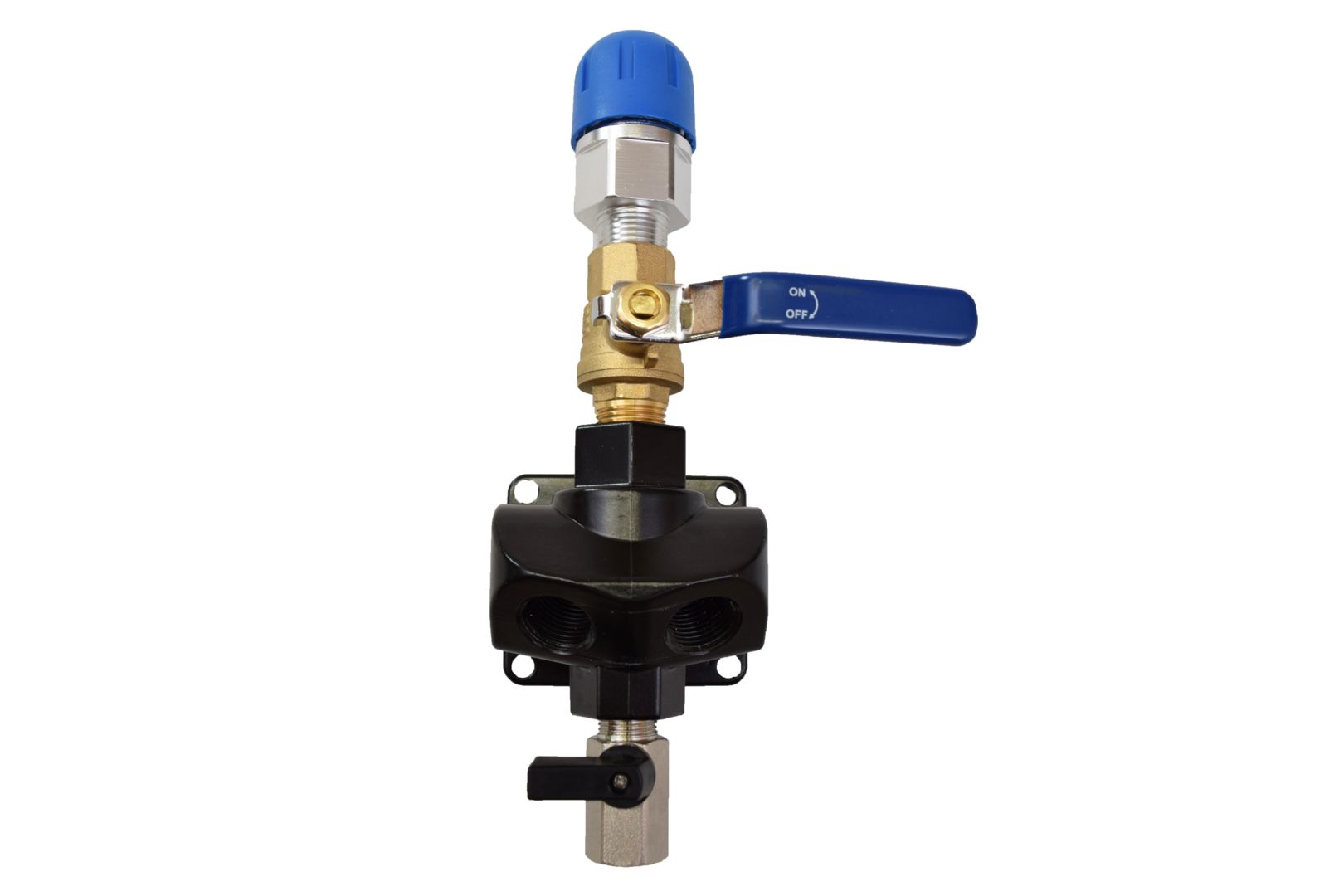

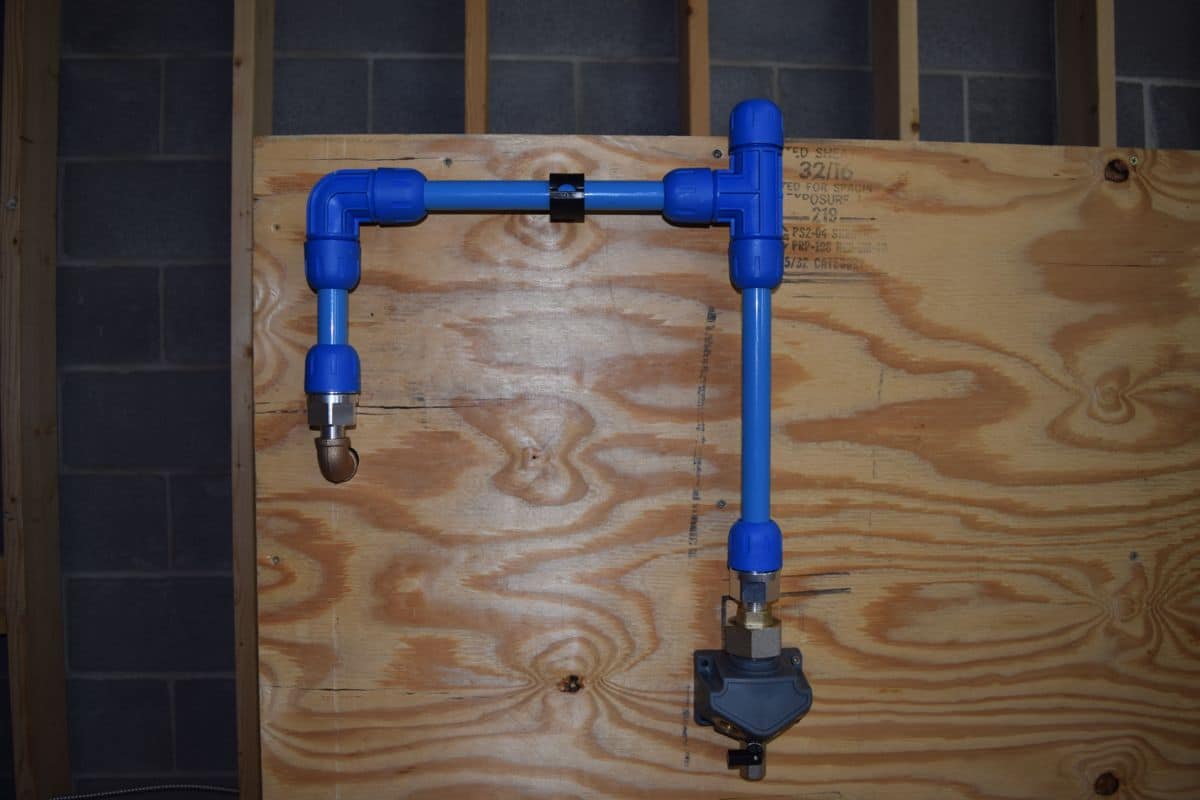

Dual Port Outlet Kit

  • F1024: 3/4” Fastpipe, 1/2” Female NPT Outlets (4X)
  • F2024: 1” Fastpipe, 1/2” Female NPT Outlets (4X)
  • Includes outlet body, drain valve, (2) 1/2″ npt plugs

Each side of outlet has an extra ½” NPT port, 2 plugs included

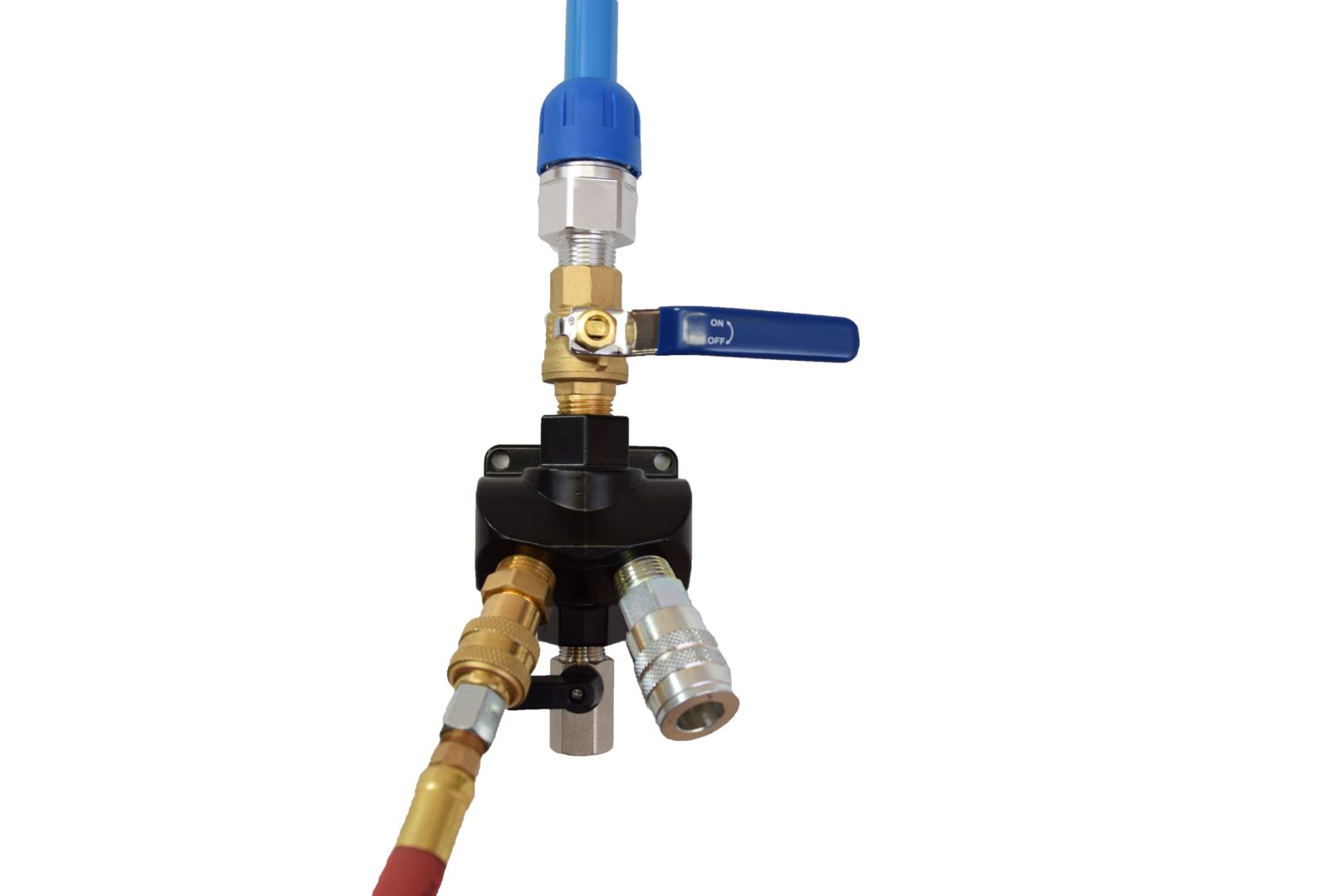

Dual Port Outlet Kit With Shutoff

  • F1024V: 3/4” Fastpipe, 1/2” Female NPT Outlets (4X)
  • F2024V: 1” Fastpipe, 1/2” Female NPT Outlets (4X)
  • Includes compression threaded adapter, top shutoff valve, outlet body, drain valve, (2) 1/2″ npt plugs

Each side of outlet has an extra ½” NPT port, 2 plugs included

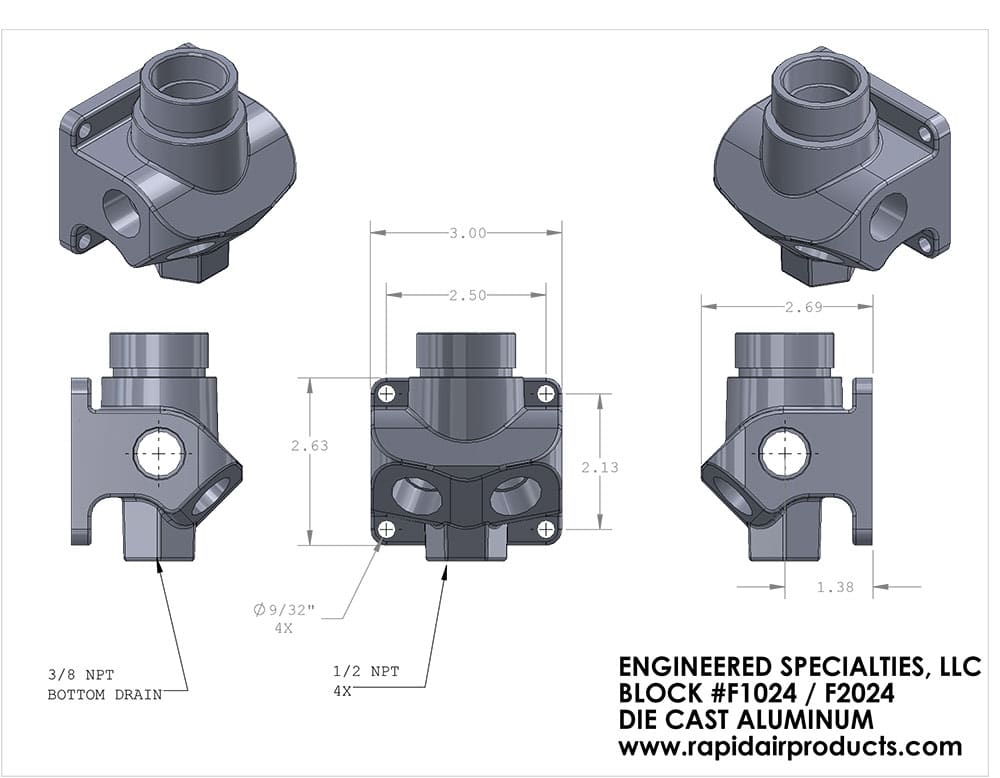

Dual Port Outlet Drawing

Dual Port Outlet

  • F2025: 1/2” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)
  • F2026: 3/4” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)
  • Includes outlet body, drain valve, (2) 1/2″ npt plugs

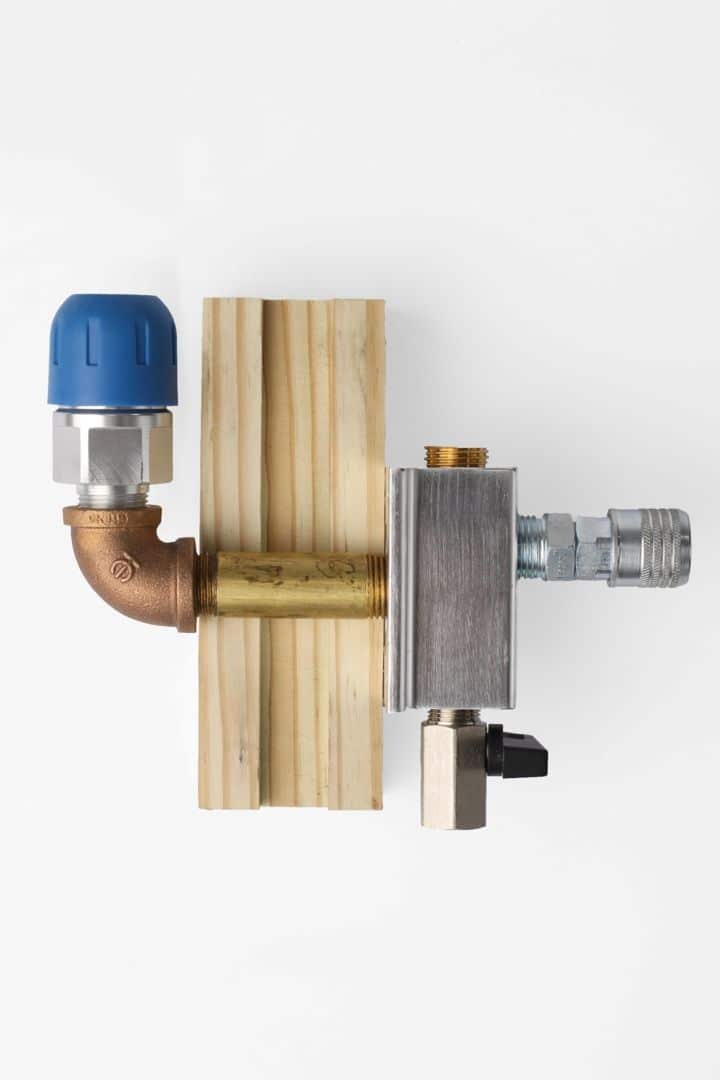

  • Use these bare outlet bodies for connecting to other threaded pipe systems like copper or black pipe

Each side of outlet has an extra ½” NPT port, 2 plugs included

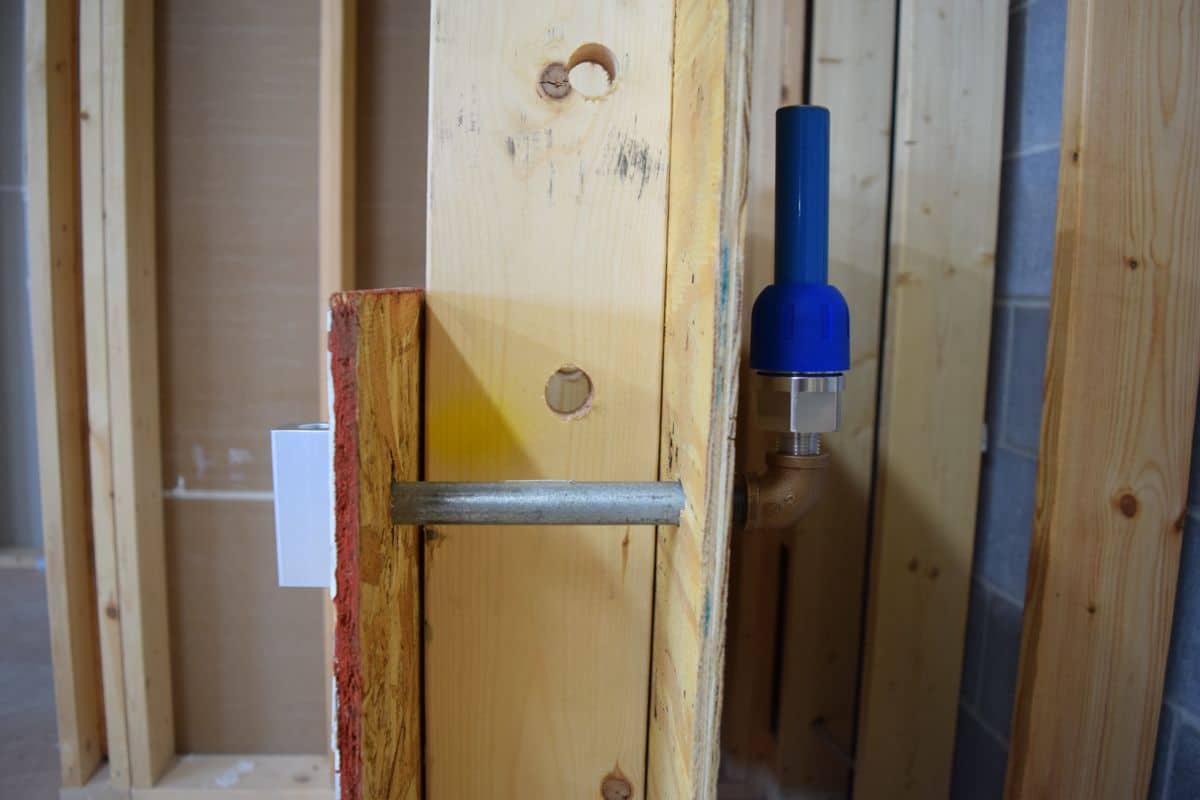

Outside or Thru Wall Outlet Kit:

  • #F1024W Outside or Thru Wall Outlet, 3/4” Fastpipe, 1/2″ Female NPT Out
  • #F2024W Outside or Thru Wall Outlet, 1” Fastpipe, 1/2″ Female NPT Out

Outside Outlets use aluminum block M81010

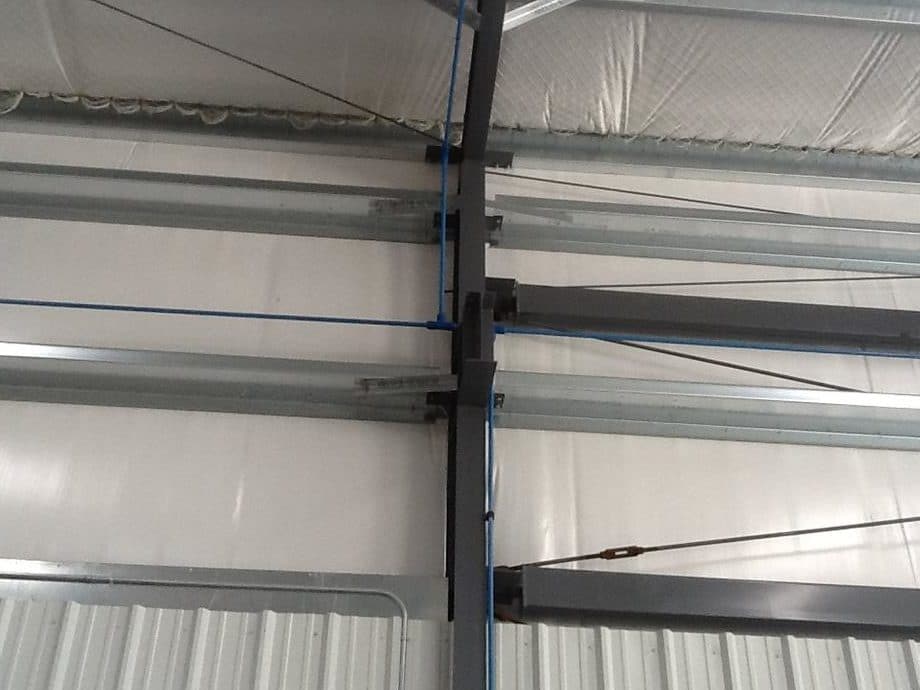

Mounting Pipe:

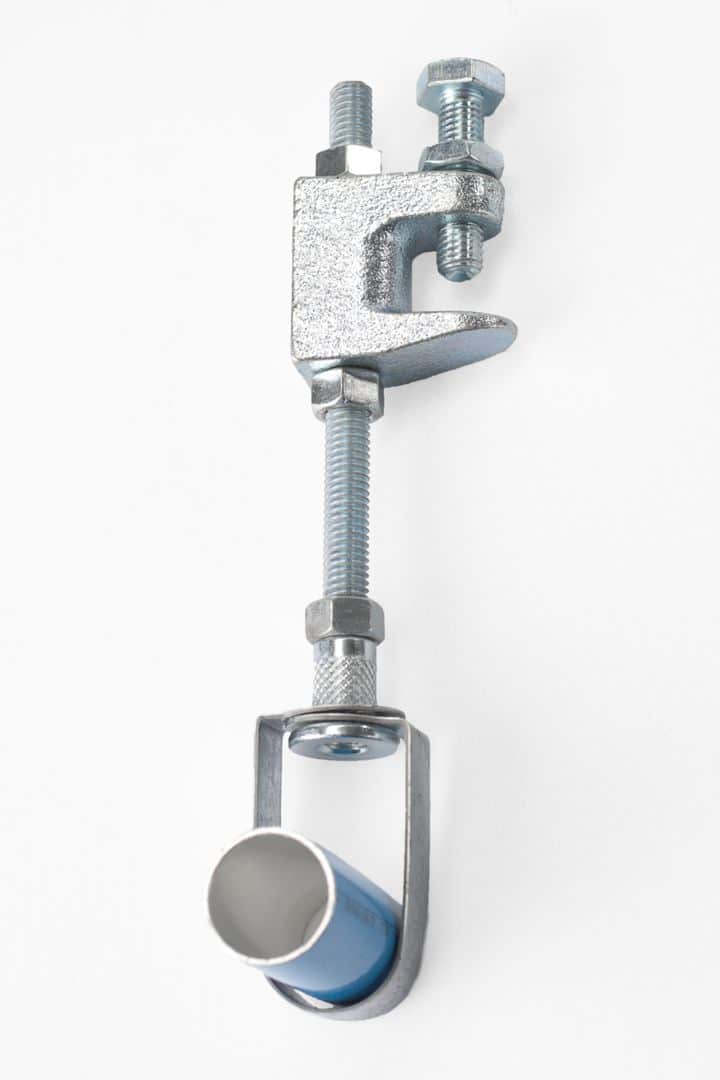

  • Hanging-use a beam clamp, threaded rod and loop hanger
  • Wall/ceiling Mount-use our pipe clip with a fastener and a 5/16 hex nut as a backer
  • Strut mount-Use the Rapidair cushion clamps
  • Spacing for all mounting should be every 10 ft and one side of a fitting

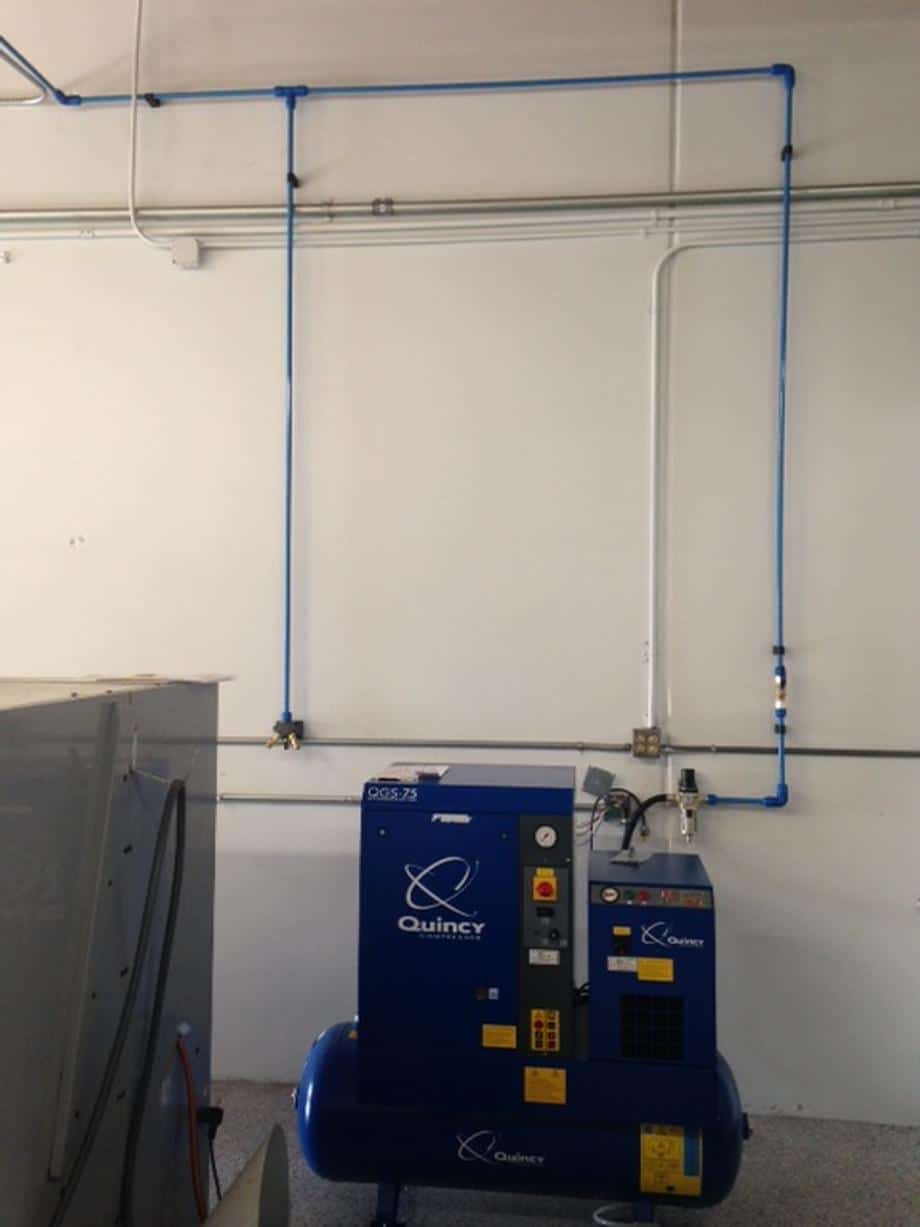

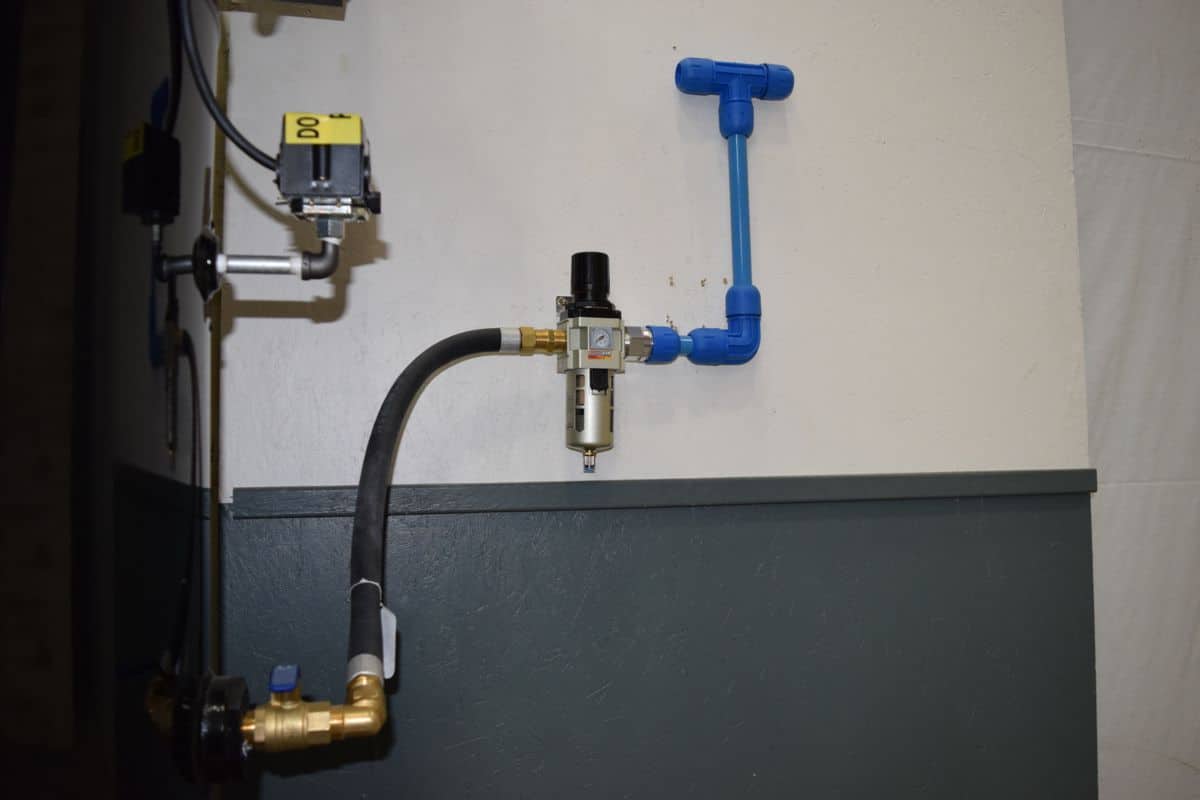

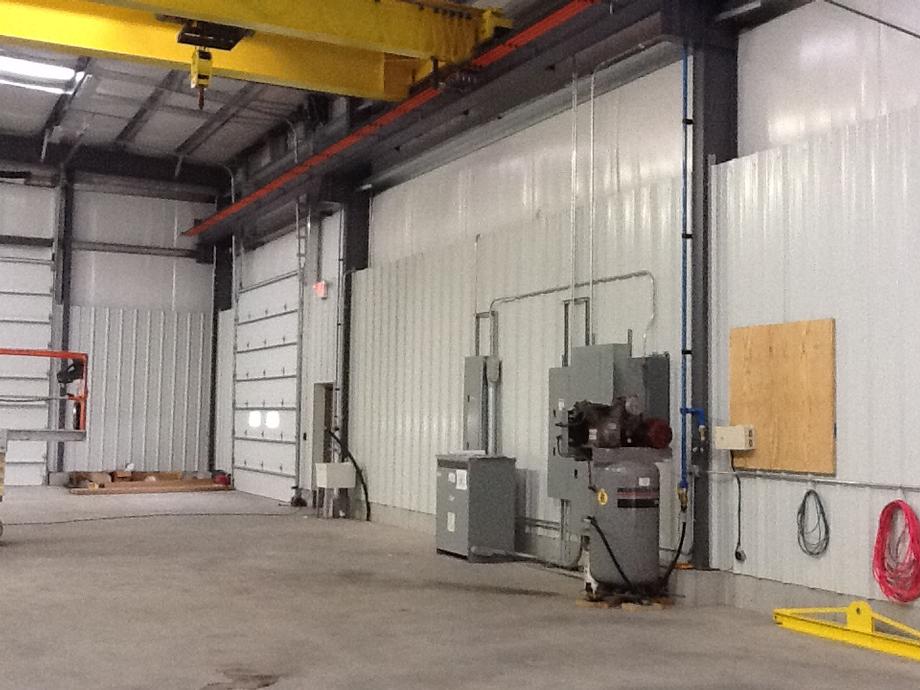

Compressor Hookup: use a jumper hose to a Filter/Regulator unit

The air from the air compressor must enter the port labeled “IN” on the filter/regulator

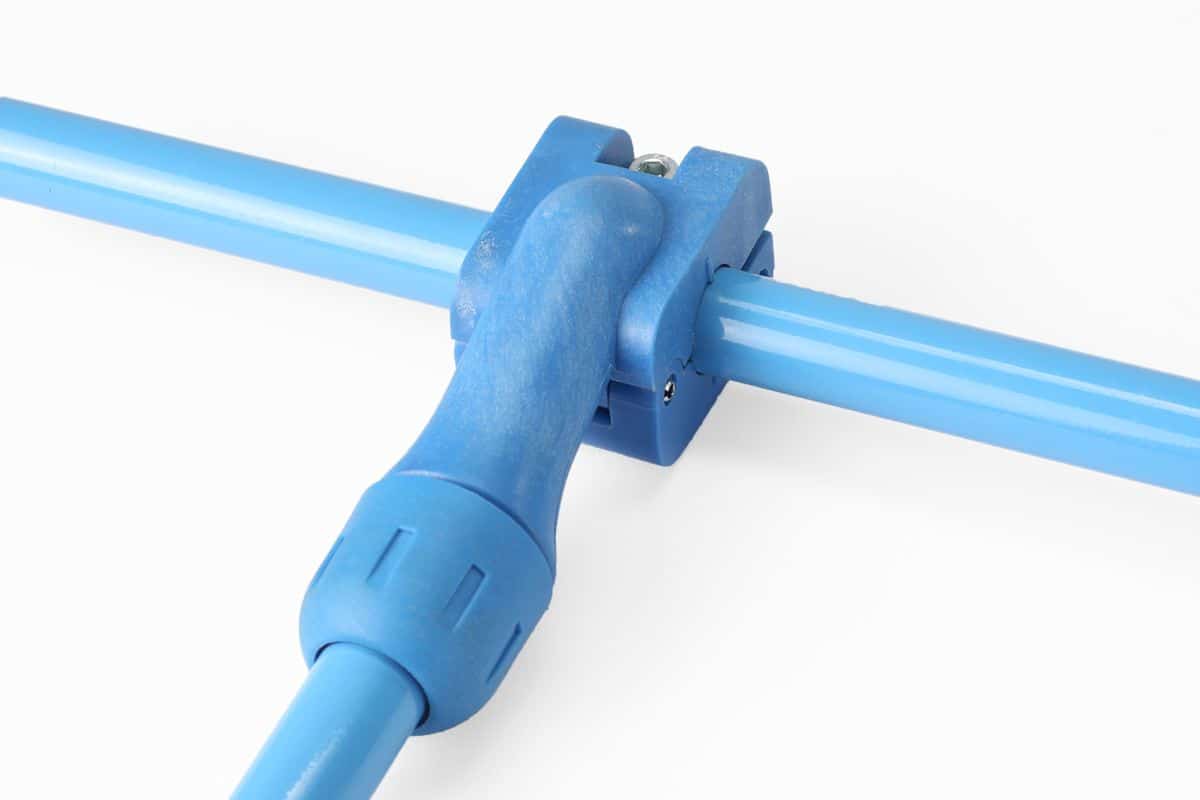

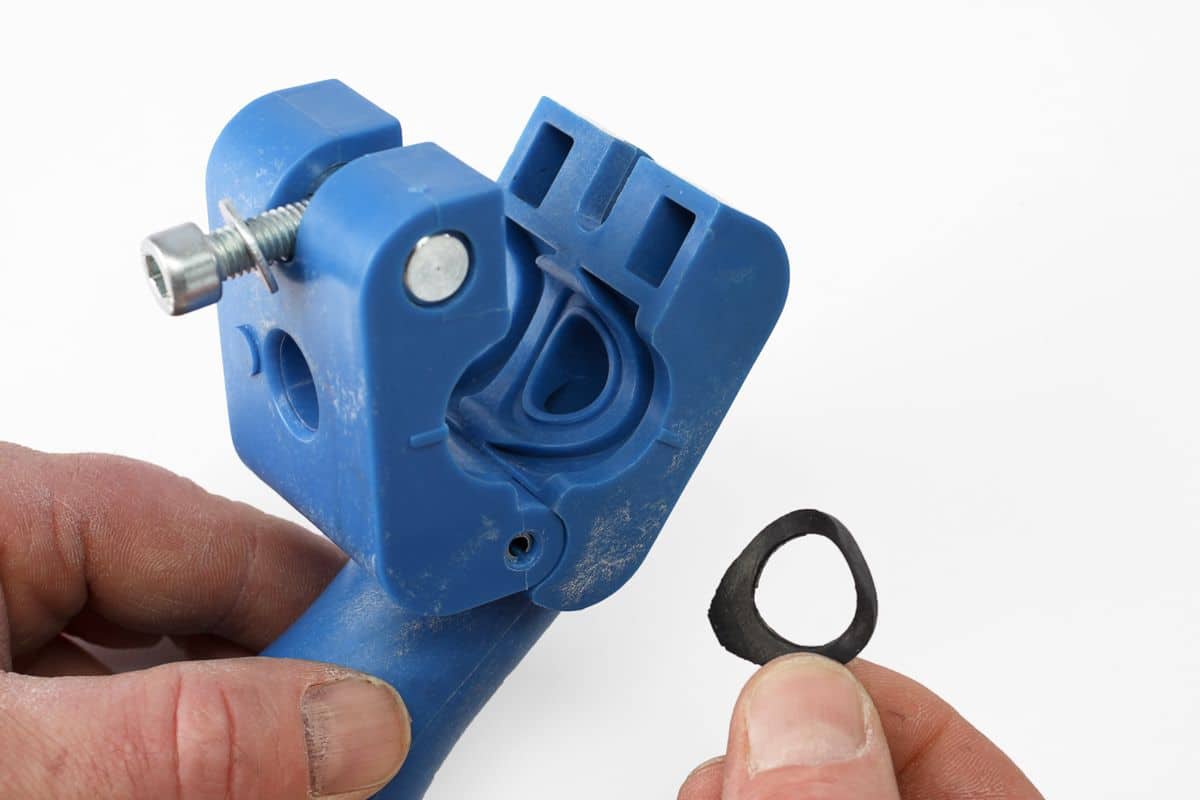

Saddle drops can be installed at any location on the pipe to add another outlet point. We do recommend using a tee fitting for the initial installation.

Assembling Pipe Thread

Assemble all NPT threads with two wraps of Thread tape and then PIPE SEALANT which prevents thread galling.
