#D8101 Single port outlet Kit, 1/2″ Tubing, 1/2″ Female NPT Out

#D8101V Single port outlet Kit with shutoff valve

#D8101 Outlet kit uses aluminum block #M81010

Dual Port Outlet Kit

  • D8200: 1/2” Duratec, 1/2” Female NPT Outlets (4X)
  • D8201: 3/4” Duratec, 1/2” Female NPT Outlets (4X)
  • Includes compression threaded adapter, outlet body, drain valve, (2) 1/2″ npt plugs
  • Each side of outlet has an extra ½” NPT port, 2 plugs included

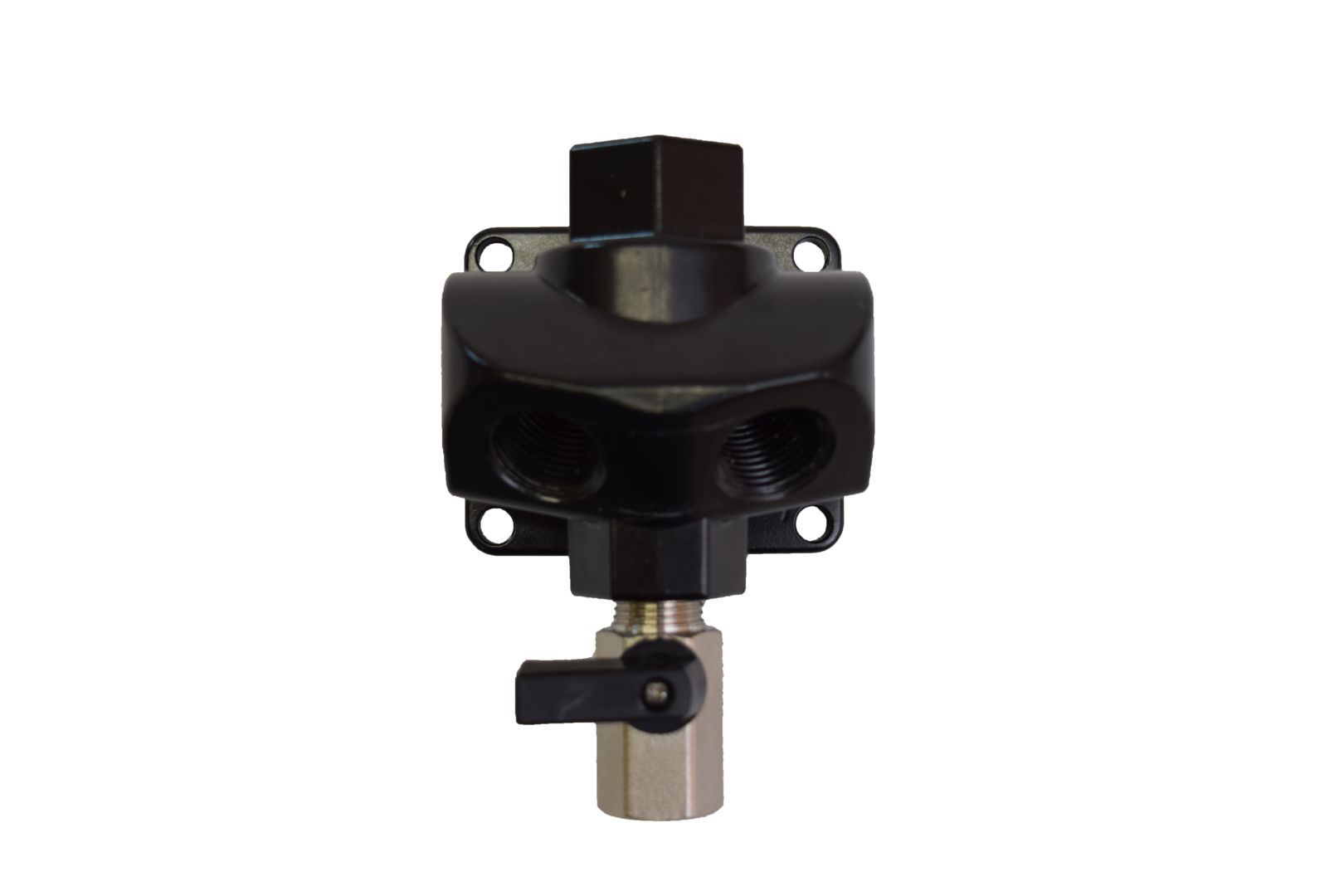

Dual Port Outlet Kit With Shutoff

  • D8200V: 1/2” Duratec, 1/2” Female NPT Outlets (4X)
  • D8201V: 3/4” Duratec, 1/2” Female NPT Outlets (4X)
  • Includes compression threaded adapter, top shutoff valve, outlet body, drain valve, (2) 1/2″ npt plugs
  • Each side of outlet has an extra 1/2” NPT port, 2 plugs included

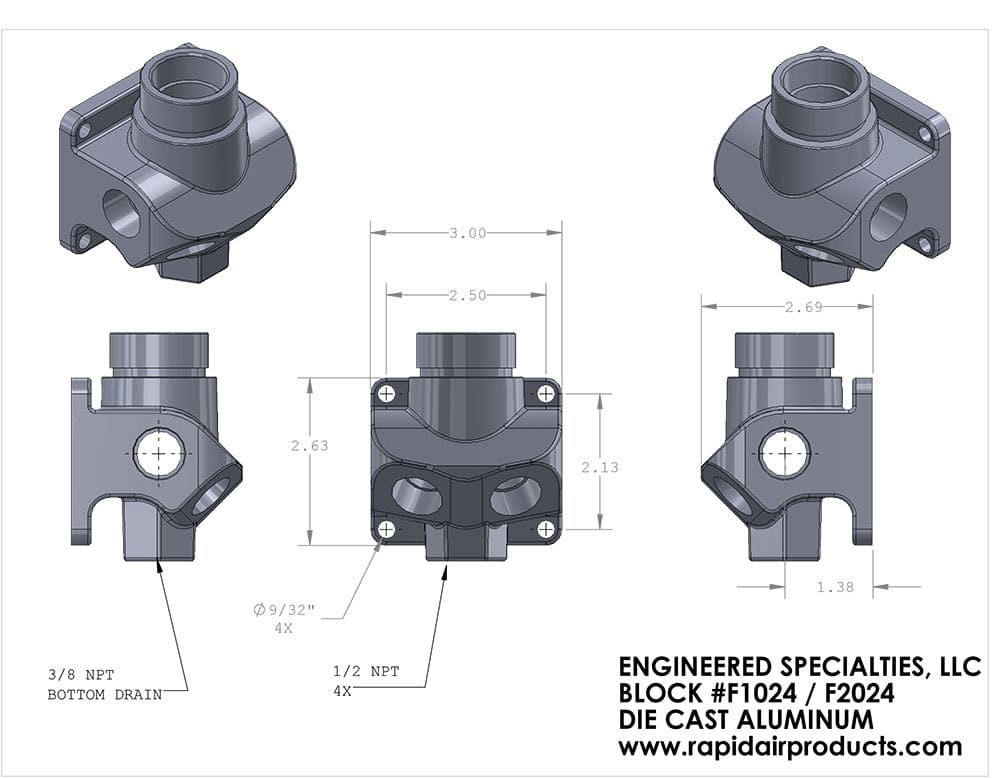

Dual Port Outlet Drawing

Dual Port Outlet

  • F2025: 1/2” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)
  • F2026: 3/4” Threaded Female NPT Top, 1/2” Female NPT Outlets (4X)
  • Includes outlet body, drain valve, (2) 1/2″ npt plugs
  • Each side of outlet has an extra 1/2” NPT port, 2 plugs included

Use these bare outlet bodies for connecting to other threaded pipe systems like copper or black pipe

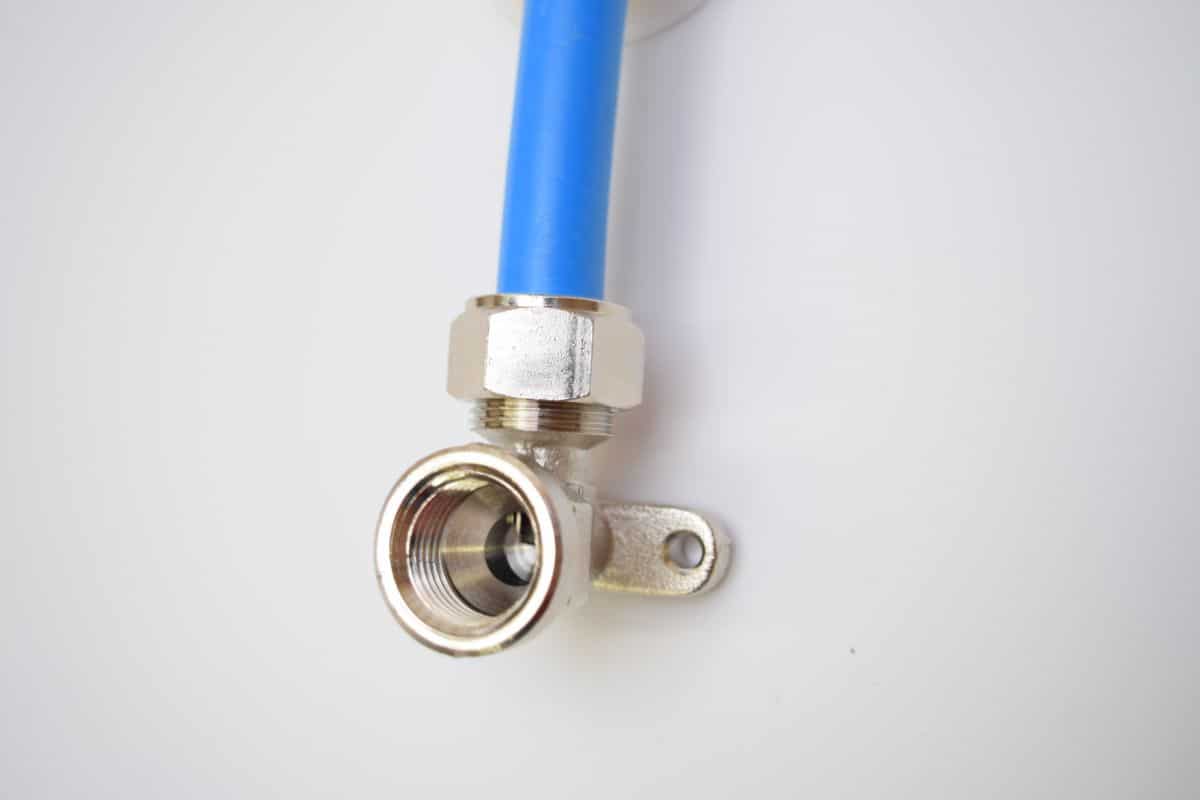

#D8009 Single Port Elbow 1/2” Tubing x 1/2” Female NPT -used for inert gas, no moisture drain

Assembling Pipe Thread

Assemble all NPT threads with two wraps of Thread tape and then PIPE SEALANT which prevents thread galling.
